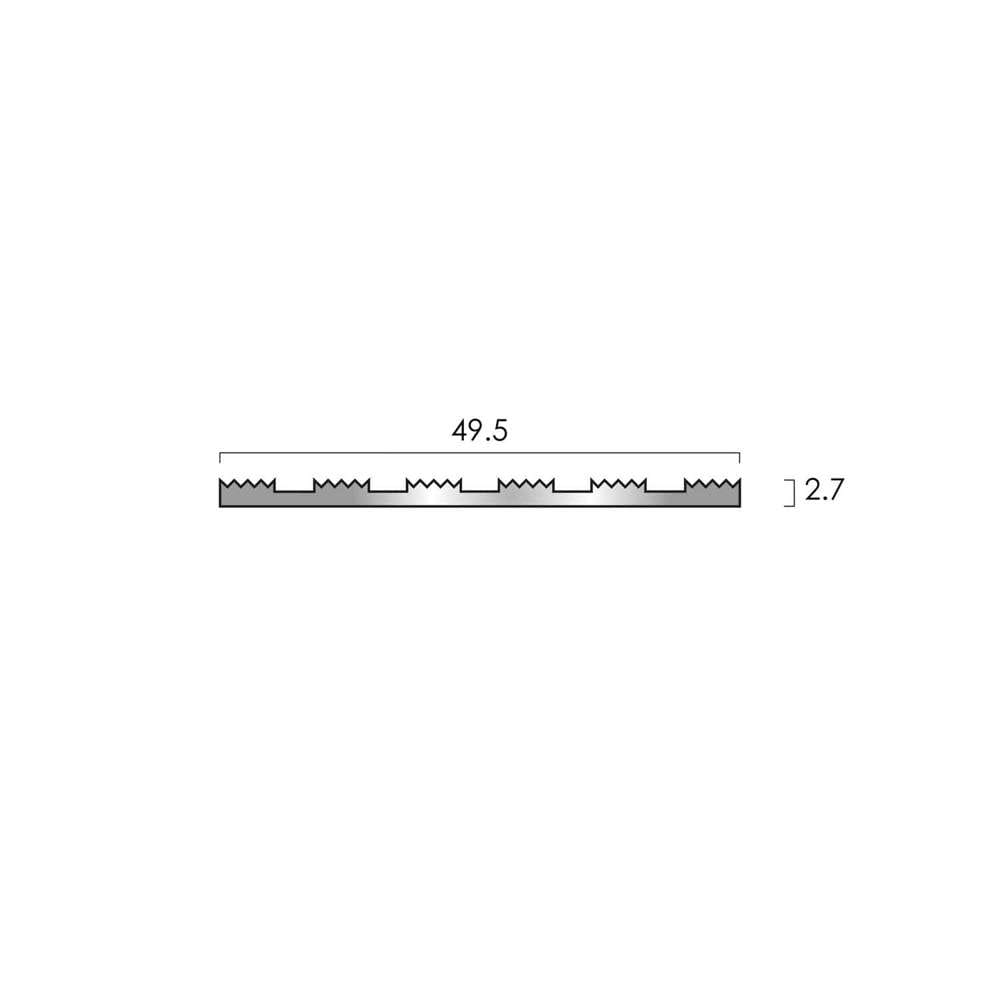

ATI49.5 – Aluminium

ATI49.5 Castellated Aluminium tread inserts are available in 6 finish options to suit all installations.

Typical Installation: To define and provide slip resistance to the edge of stair treads. Tolerance allowance should always be made when rebating to allow for any variation in size. Samples available prior to rebate.

Part of our Designer Collection, ATI49.5 is available in Bronze and Light Bronze finishes, perfect for installations where the iconic look of aged brass is desired, without the higher budget. Matching flooring trims are also available as part of our DHC range.

Order Free Samples

Technical Specification

Black Anodised
Bronze
Light Bronze
Mill Aluminium
Polished Aluminium
Satin Aluminium
Suitability

For stairs with low to medium traffic volumes. Heavy foot traffic and impact damage can wear through the finish to reveal the natural aluminium colour beneath.

Application

For rebating into stone and wooden steps or between ceramic tiles, to provide a visual aid and some slip resistance. Can also be supplied as a tread insert with CAT aluminium stair nosing profiles with equivalent infill pocket dimensions for an all- aluminium installation where concealed fixings are required. Installation guide available.

Supplied in Stock Lengths

2750 mm

Fixing

Adhesive. We recommend Stycco Flex rapid curing flexible adhesive by F. Ball & Co Ltd. subject to following their instructions for use.

Light Reflective Value (Finish)

4.8 Find out more

Slip Resistance Values

SRV Wet: 54, SRV Dry: 82 Find out more

Suitability

Medium to heavy foot traffic in interior situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.

Application

For rebating into stone and wooden steps or between ceramic tiles, to provide a visual aid and some slip resistance. Can also be supplied as a tread insert with CAT aluminium stair nosing profiles with equivalent infill pocket dimensions for an all- aluminium installation where concealed fixings are required. Installation guide available.

Supplied in Stock Lengths

2750 mm

Fixing

Adhesive. We recommend Stycco Flex rapid curing flexible adhesive by F. Ball & Co Ltd. subject to following their instructions for use.

Light Reflective Value (Finish)

10.1 Find out more

Slip Resistance Values

SRV Wet: 54, SRV Dry: 82 Find out more

Suitability

Medium to heavy foot traffic in interior situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.

Application

For rebating into stone and wooden steps or between ceramic tiles, to provide a visual aid and some slip resistance. Can also be supplied as a tread insert with CAT aluminium stair nosing profiles with equivalent infill pocket dimensions for an all- aluminium installation where concealed fixings are required. Installation guide available.

Supplied in Stock Lengths

2750 mm

Fixing

Adhesive. We recommend Stycco Flex rapid curing flexible adhesive by F. Ball & Co Ltd. subject to following their instructions for use.

Light Reflective Value (Finish)

27.25 Find out more

Slip Resistance Values

SRV Wet: 54, SRV Dry: 82 Find out more

Suitability

Medium to heavy foot traffic in interior situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.

Application

For rebating into stone and wooden steps or between ceramic tiles, to provide a visual aid and some slip resistance. Can also be supplied as a tread insert with CAT aluminium stair nosing profiles with equivalent infill pocket dimensions for an all- aluminium installation where concealed fixings are required. Installation guide available.

Supplied in Stock Lengths

2750 mm

Fixing

Adhesive. We recommend Stycco Flex rapid curing flexible adhesive by F. Ball & Co Ltd. subject to following their instructions for use.

Light Reflective Value (Finish)

71.65 Find out more

Slip Resistance Values

SRV Wet: 54, SRV Dry: 82 Find out more

Suitability

Medium to heavy foot traffic in interior situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.

Application

For rebating into stone and wooden steps or between ceramic tiles, to provide a visual aid and some slip resistance. Can also be supplied as a tread insert with CAT aluminium stair nosing profiles with equivalent infill pocket dimensions for an all- aluminium installation where concealed fixings are required. Installation guide available.

Supplied in Stock Lengths

2750 mm

Fixing

Adhesive. We recommend Stycco Flex rapid curing flexible adhesive by F. Ball & Co Ltd. subject to following their instructions for use.

Light Reflective Value (Finish)

75.55 Find out more

Slip Resistance Values

SRV Wet: 54, SRV Dry: 82 Find out more

Suitability

Medium to heavy foot traffic in interior situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.

Application

For rebating into stone and wooden steps or between ceramic tiles, to provide a visual aid and some slip resistance. Can also be supplied as a tread insert with CAT aluminium stair nosing profiles with equivalent infill pocket dimensions for an all- aluminium installation where concealed fixings are required. Installation guide available.

Supplied in Stock Lengths

2750 mm

Fixing

Adhesive. We recommend Stycco Flex rapid curing flexible adhesive by F. Ball & Co Ltd. subject to following their instructions for use.

Light Reflective Value (Finish)

65.4 Find out more

Slip Resistance Values

SRV Wet: 54, SRV Dry: 82 Find out more

Finishes

Finish: Black Anodised

Black Anodised

Finish: Bronze

Bronze

Finish: Light Bronze

Light Bronze

Finish: Mill Aluminium

Mill Aluminium

Finish: Polished Aluminium

Polished Aluminium

Finish: Satin Aluminium

Satin Aluminium

See more products in these finishes
