PVC TI 50 – PVC

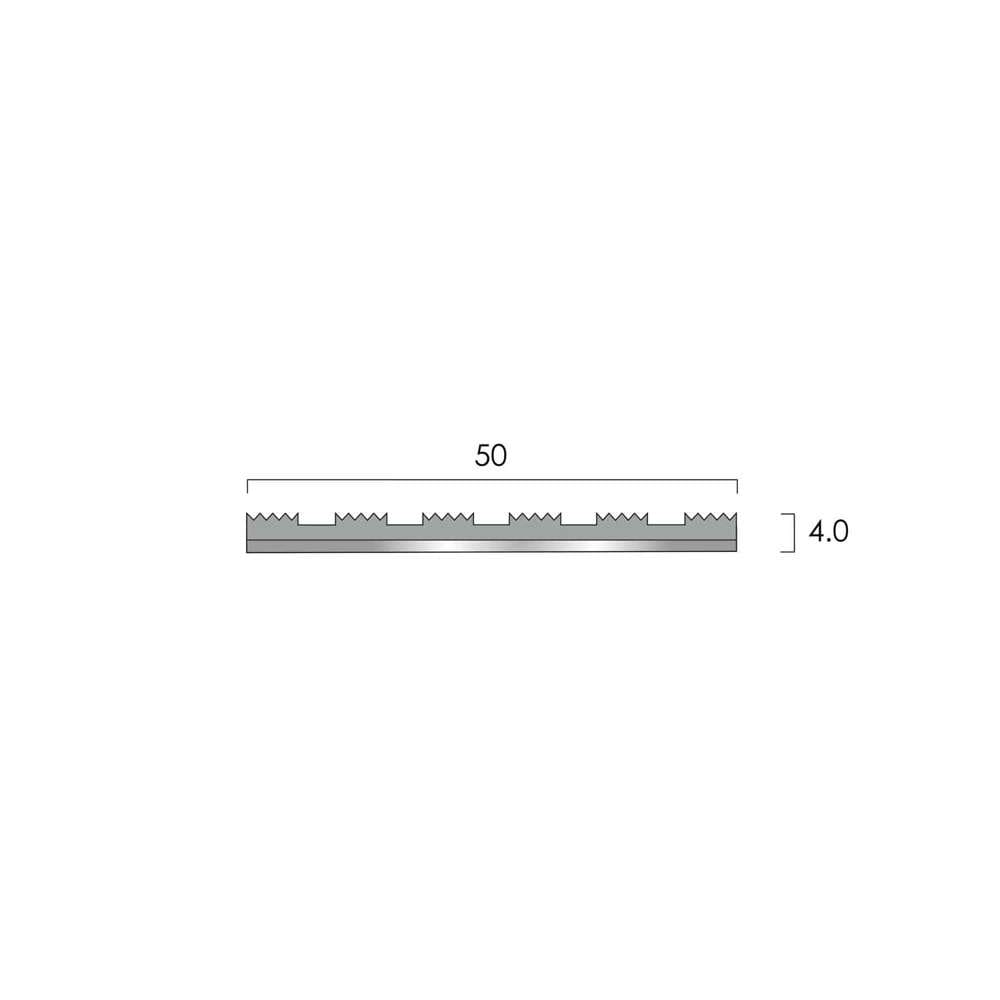

PVC TI 50 Castellated PVC tread inserts are available in 21 colour options to suit all installations. Castellated PVC infills are supplied mounted on an aluminium carrier.

Typical Installation: To define and provide slip resistance to the edge of stair treads. Tolerance allowance should always be made when rebating to allow for any variation in size. Samples available prior to rebate.

Technical Specification

Mill Aluminium
Suitability

Medium to heavy foot traffic in interior situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.

Application

For rebating into stone and wooden steps or between ceramic tiles, to provide a visual aid and some slip resistance. Suitable of exterior and interior applications. Installation guide available.

Supplied Cut to Size, up to a Maximum Length of

2500 mm

Fixing

Adhesive. We recommend Stycco Flex rapid curing flexible adhesive by F. Ball & Co Ltd. subject to following their instructions for use.

Slip Resistance Values

Castellated PVC Insert - SRV Dry: 85 - SRV Wet: 76
Find out more

Find Out More

Infill Options

Castellated PVC Insert

Black Castellated PVC

Black

Flint Castellated PVC

Flint

Granite Castellated PVC

Granite

Peat Castellated PVC

Peat

Spruce Castellated PVC

Spruce

Claret Castellated PVC

Claret

Regency Castellated PVC

Regency

Rustic Castellated PVC

Rustic

Jade Castellated PVC

Jade

Porth Stone Castellated PVC

Porth Stone

Light Grey Castellated PVC

Light Grey

Mid Blue Castellated PVC

Mid Blue

Fawn Castellated PVC

Fawn

Yellow Castellated PVC

Yellow

Polar Grey Castellated PVC

Polar Grey

Nimbus Castellated PVC

Nimbus

Ivory Castellated PVC

Ivory

Poppy Castellated PVC

Poppy

White Castellated PVC

White

Gold Castellated PVC

Gold

Olive Castellated PVC

Olive
